Home EV Charger Installation: Is a Switchboard Upgrade Necessary?

Table of Contents

Toggle

Why Upgrading Your Switchboard is Crucial for Safe Installation of Home EV Chargers

Absolutely! In numerous households throughout Melbourne, the installation of an EV charger often necessitates a comprehensive switchboard upgrade. Many older switchboards lack the essential load capacity, RCD protection, and available circuit space required for the safe and compliant installation of an electric vehicle charger. Engaging a licensed electrician to perform a thorough inspection is imperative. This ensures that your switchboard is upgraded accordingly, thereby guaranteeing that your home can safely accommodate the charging of your EV without any associated risks or complications. Remember, safety should always be the top priority when it comes to electrical installations, especially with high-demand devices like EV chargers.

With the increasing popularity of electric vehicles in Melbourne, an ever-growing number of homeowners are opting to install EV chargers in their garages or driveways. However, many individuals are unaware that proper preparation of your home’s electrical system is essential for a successful installation. This preparation begins with a comprehensive evaluation of your switchboard. It is crucial to ensure that your electrical infrastructure can support the demands of an EV charger, which not only helps in maintaining safety but also enhances efficiency, ensuring that your charging experience is much more reliable and effective.

At Direct Point Electrical, we have successfully installed numerous EV chargers across Berwick, Narre Warren, and Cranbourne in Melbourne’s outer east. In nearly every case, the initial component we assess is the switchboard, confirming that it meets all necessary standards for safe and effective charging. Our expertise ensures that each installation complies with local regulations while optimising performance. By prioritising safety and compliance, we provide peace of mind to our clients, assuring them that their charging solutions are both efficient and secure.

Understanding the Unique Requirements of EV Chargers Compared to Standard Power Points

EV chargers are distinctly different from standard household appliances, such as your toaster or washing machine. Most residential charging units, particularly the popular 7kW and 22kW models, necessitate:

• A dedicated circuit designed to efficiently manage the electrical load, ensuring enhanced safety
• Mandatory RCD protection as stipulated by AS/NZS 3000 standards to mitigate risks associated with electrical faults
• Ample amp capacity, typically ranging from 32A to 50A, to accommodate the specific requirements of the charger
• Effective load balancing to prevent the risk of overloading other circuits within your home, which can lead to safety hazards

Therefore, connecting an EV charger to an outdated fuse box or overloaded switchboard is not only unwise; it poses significant safety hazards and fails to comply with current regulations. For detailed guidance on the requirements for EV chargers in residential settings, it is essential to consult with professionals who understand the intricacies involved in such installations.

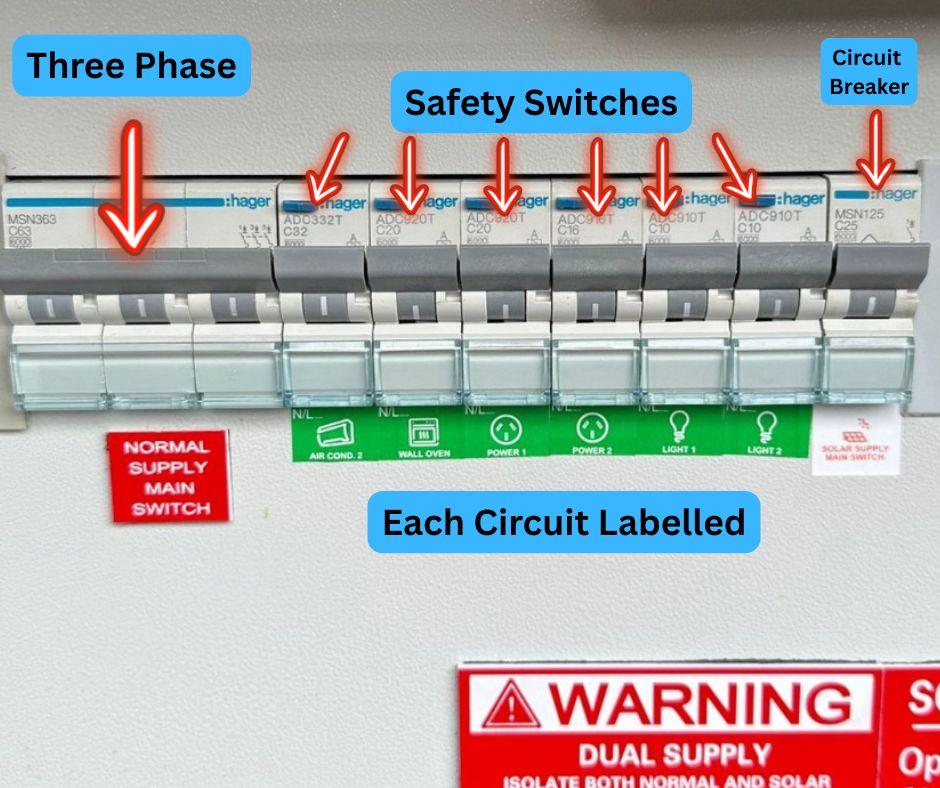

Recognizing the Signs That Your Switchboard Needs an Upgrade

If your home was built more than two decades ago, it is highly probable that your switchboard lacks the capacity to effectively support an EV charger. Here are some critical indicators we assess during our evaluations:

• Old ceramic fuses or asbestos backing, both of which are outdated and hazardous materials that require immediate replacement
• The absence of RCD or safety switch protection, which is crucial for preventing electrical accidents and ensuring safety
• Limited circuit space that restricts the installation of a new dedicated circuit for the EV charger
• Signs of burn marks, buzzing noises, or frequent tripping when using appliances, indicating potential electrical issues
• Lack of a 3-phase supply if you aim to install a faster 22kW charger to meet your charging needs

Any of these warning signs indicate potential risks for both safety and EV compatibility in your home and should not be overlooked. It is essential to address these concerns promptly to ensure a safe environment for your family and your electronic devices.

Note: The Electric Vehicle Council recommends installing a dedicated circuit for your EV. This precautionary measure prevents the overloading of existing circuits in your residence. When establishing a dedicated circuit, it is advisable to opt for a 15amp outlet and charger instead of the standard 10amp circuit, as this adjustment can enhance your charging rate by 50% and significantly reduce your charging time.

Step-by-Step Process for Upgrading Your Switchboard for EV Charger Installation

At Direct Point Electrical, we strive to make the upgrade process as straightforward and stress-free as possible for our clients:

1. Site Assessment – We conduct a thorough inspection of your existing switchboard, wiring, and main power supply to identify any potential issues.
2. Load Calculation – We rigorously evaluate whether your residence can handle the additional load from the EV charger, ensuring safety and compliance.
3. Upgrade Planning – If an upgrade is necessary, we provide a comprehensive quote for a new compliant switchboard that includes RCDs, surge protection, and sufficient space for the EV charger installation.
4. Documentation & Compliance – We handle all necessary paperwork with your energy distributor (AusNet or United Energy) and issue a Certificate of Electrical Safety upon completion of the installation.

Depending on the current condition and configuration of your switchboard, most upgrades can be completed within a single day. This allows you to swiftly enjoy the convenience of charging your EV at home without unnecessary delays, ensuring you stay powered and ready to go.

Understanding Compliance Requirements for EV Chargers in Victoria

All electrical work conducted in Victoria must adhere to the AS/NZS 3000 Wiring Rules, which govern the safe installation of EV chargers. A licensed electrician is required to:

• Implement RCD protection for the charging circuit, safeguarding against electrical faults that could pose hazards
• Ensure that the load from the charger does not exceed the main switch capacity, preventing potential overloads
• Submit necessary forms to your energy distributor to ensure compliance with local regulations
• Provide a Certificate of Electrical Safety upon the successful completion of the installation

Attempting any DIY or unlicensed installations is not only illegal; it also voids warranties and can lead to serious fire hazards or insurance claim denials. It is always best to consult with professionals to ensure that your installation is both safe and compliant with regulations.

Key Considerations When You Already Have Solar Panels or Batteries Installed

This is fantastic! However, it remains essential to analyse how the EV charger will interact with your existing solar energy system. Balancing the load between solar energy, battery storage, and EV charging requires meticulous planning and consideration to optimise efficiency and performance.

We will collaborate closely with you to:

• Schedule charging times to maximise the utilisation of solar energy, ensuring that you are getting the most out of your existing setup
• Ensure that your inverter and battery configuration can accommodate the energy draw from the charger, preventing any disruptions
• Recommend appropriate charger models that feature smart load management capabilities for optimal performance and energy efficiency

Evaluating the Need for a 3-Phase Power Supply Upgrade for EV Charging

Not necessarily. A 7kW charger operates effectively on single-phase power for most users. However, if:

• You desire faster charging times to reduce waiting and improve convenience
• You own two electric vehicles that need simultaneous charging
• Or you are running high-load appliances that may conflict with the charging process

… then considering a 3-phase upgrade could be advantageous. We can provide expert advice on this during your initial inspection, helping you make informed decisions about your energy needs and ensuring optimal charging capabilities.

Essential Factors for Successful EV Charger Installation at Your Home

If you are contemplating the installation of an EV charger at your home, prioritising your switchboard is essential for a safe and effective setup. At Direct Point Electrical, we offer free site inspections, transparent pricing, and a seamless process to ensure safe, efficient, and future-proof EV charging solutions that are tailored to your home’s unique requirements. We believe in delivering exceptional service that meets your specific needs and exceeds your expectations.

Whether you reside in Berwick, Narre Warren, or any area in Melbourne’s outer east, we have the ideal EV charging solution to satisfy your unique needs and energy demands. Our team is dedicated to providing the best possible outcomes for our clients, ensuring that your EV charging experience is hassle-free and efficient.
